8. PCA

[4]:

from fixedincome2025 import table

Overview

So far we have covered
- (Treasury) yield curve construction: A snap shot of the market
- Duration and convexity: What happens to the portfolio value if the curve moves parallelly
- Delta ladder: What happens to the portfolio value if the curve moves but not parallelly
Something is missing: How will tomorrow’s curve move?
- Of course no one knows exactly, but we can still say something
Principal component analysis (PCA) provides a great tool to model yield curve movements and to hedge any portfolios that have rates exposure

Modeling Yield Curve Movements

Although the below curve has 14 points, when we model this curve’s movement, we should not model it by 14 independent random variables

[331]:

table('yc_10092025').T

[331]:

	1m	1.5m	2m	3m	4m	6m	1y	2y	3y	5y	7y	10y	20y	30y
Yield	4.2%	4.17%	4.11%	4.03%	3.95%	3.83%	3.66%	3.6%	3.59%	3.74%	3.92%	4.14%	4.7%	4.72%

Rates for nearby maturities on the curve tend to move together—both in direction and magnitude—because the corresponding bonds are close substitutes.
- If 2y bond is too expensive, investors with the need can just buy 3y bond
- If borrowing for 2y is too expensive, borrowers can just borrow for 3y
As we will see now, PCA tells us 3 independent random variables are enough
First we need some math

Singular Value Decomposition (SVD)

Every $m\times n$ matrix $X$ can be written as

\[X = USV^{\mathsf T},\]

where
- $U$ is an $m\times m$ unitary matrix (more on unitary matrices later)
- $V$ is an $n\times n$ unitary matrix
- $S$ is an $m\times n$ matrix with nonzero entries only on the main diagonal, meaning if $S=(s_{ij})$, then $s_{ij} \neq 0$ only when $i = j$. Also the nonzero elements are sorted, meaning $s_{11} \geq s_{22} \geq s_{33} \geq \cdots \geq s_{nn}$. They are known as the singular values of $X$
For our purpose which is to model the curve movement, the important case is $m>n$

The $S$ Matrix

\[\begin{split}S = \begin{pmatrix} s_{11} & 0 & \cdots & 0\\ 0 & s_{22} & \cdots & 0\\ \vdots & \vdots & \ddots & \vdots\\ 0 & 0 & \cdots & s_{nn}\\ \vdots & \vdots & \vdots & \vdots\\ 0 & 0 & \cdots & 0\\ \end{pmatrix}_{m\times n}\end{split}\]

$s_{11} \geq s_{22} \geq s_{33} \geq \cdots \geq s_{nn}$

Unitary Matrix

Recall that $X_{m\times n} = USV^{\mathsf T}$, where $U_{m\times m}$ and $V_{n\times n}$ are both unitary
Definition: A matrix $V_{n\times n}$ is said to be unitary if $V^{\mathsf T}V = I_n$, the $n\times n$ identity matrix
Easy to compute inverse: $V^{-1} = V^{\mathsf T}$ by definition
Let

\[\begin{split}V = \begin{pmatrix} |&|& & | \\ v_1 & v_2 & \cdots & v_n \\ |&|& & | \\ \end{pmatrix},\end{split}\]

where $v_j$ are column vectors

Unitary Matrix (Cont.)

$V^{\mathsf T}V = I_n$: \begin{align*} V^{\mathsf T}V &= \begin{pmatrix} \frac{\qquad}{} & v_1^{\mathsf T} & \frac{\qquad}{} \\ \frac{\qquad}{} & v_2^{\mathsf T} & \frac{\qquad}{} \\ & \vdots & \\ \frac{\qquad}{} & v_n^{\mathsf T} & \frac{\qquad}{} \\ \end{pmatrix} \begin{pmatrix} |&|& & | \\ v_1 & v_2 & \cdots & v_n \\ |&|& & | \\ \end{pmatrix}\\ &= \begin{pmatrix} \langle v_1, v_1\rangle & \langle v_1, v_2\rangle & \cdots & \langle v_1, v_n\rangle\\ \langle v_2, v_1\rangle & \langle v_2, v_2\rangle & \cdots & \langle v_2, v_n\rangle\\ \vdots&\vdots&\ddots&\vdots \\ \langle v_n, v_1\rangle & \langle v_n, v_2\rangle & \cdots & \langle v_n, v_n\rangle \end{pmatrix} = \begin{pmatrix} 1 & 0 & \cdots & 0\\ 0 & 1 & \cdots & 0\\ \vdots&\vdots&\ddots&\vdots \\ 0 & 0 & \cdots & 1 \end{pmatrix}, \end{align*} where $\langle \cdot, \cdot\rangle$ stands for the inner product of two vectors
Unitary means
- The column vectors have norm 1 and
- Inner product of any two different column vectors is 0

Vector Norm

Let $\vec a = (a_1, a_2, \ldots, a_n)^{\mathsf T}$ be a column vector. Then its norm is \begin{align*} \lVert \vec a \rVert = \sqrt{\langle a, a\rangle} = \sqrt{a_1^2 + a_2^2 + \cdots + a_n^2} \end{align*}
Norm is the “length” of a vector in high dimensions

Inner Product

If $\vec a = (a_1, a_2, \ldots, a_n)^{\mathsf T}$ and $\vec b = (b_1, b_2, \ldots, b_n)^{\mathsf T}$, then \begin{align*} \langle \vec a, \vec b\rangle &= \vec a^{\mathsf T}\vec b = \vec b^{\mathsf T}\vec a \\ &= a_1b_1 + a_2b_2 + \cdots + a_nb_n \end{align*}

Zero Inner Product in 2D

Two vectors having zero inner product basically means they are “perpendicular”
Take 2D as an example. If $v_1$ and $v_2$ are in 2D and $\langle v_1, v_2\rangle = 0$, write in polar coordinates \begin{align*} v_1 &= (r_1 \cos \theta_1, r_1 \sin \theta_1)^{\mathsf T}, \\ v_2 &= (r_2 \cos \theta_2, r_2 \sin \theta_2)^{\mathsf T}. \end{align*} Then $\langle v_1, v_2\rangle = 0$ means \begin{align*} r_1 r_2 (\cos \theta_1 \cos \theta_2 + \sin \theta_1\sin \theta_2) = r_1 r_2 \cos (\theta_1 - \theta_2) = 0. \end{align*} So $\theta_1 - \theta_2 = 90^{\circ}$ (plus multiples of $180^{\circ}$), so $v_1$ and $v_2$ are perpendicular.

In general, in 2D and 3D, inner product has the property

\[\langle \vec a, \vec b\rangle = \lVert \vec a \rVert\lVert \vec b \rVert \cos\theta,\]

where $\theta$ is the angle between the two vectors

Perpendicular in 2D

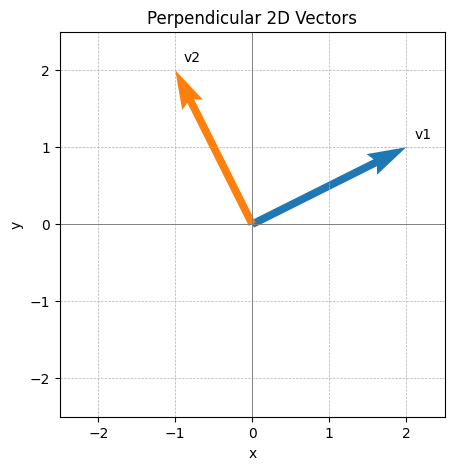

Perpendicular 2D vectors with norm 1 are just rotation of $(1, 0)^{\mathsf T}$ and $(0, 1)^{\mathsf T}$

[332]:

import numpy as np
import matplotlib.pyplot as plt

# Example vectors in 2D
v1 = np.array([2.0, 1.0])
# perpendicular vector obtained by rotating v1 by 90 degrees: [-y, x]
v2 = np.array([-v1[1], v1[0]])

fig, ax = plt.subplots(figsize=(5,5))
# draw thin axes lines
ax.axhline(0, color='gray', linewidth=0.7)
ax.axvline(0, color='gray', linewidth=0.7)

# plot vectors using quiver so lengths are respected
ax.quiver(0, 0, v1[0], v1[1], angles='xy', scale_units='xy', scale=1, color='C0', width=0.02)
ax.quiver(0, 0, v2[0], v2[1], angles='xy', scale_units='xy', scale=1, color='C1', width=0.02)

# annotate tips
ax.annotate('v1', xy=(v1[0], v1[1]), xytext=(6,6), textcoords='offset points')
ax.annotate('v2', xy=(v2[0], v2[1]), xytext=(6,6), textcoords='offset points')

# determine symmetric plot limits and enforce equal aspect ratio
max_coord = np.max(np.abs(np.vstack((v1, v2)))) * 1.25
ax.set_xlim(-max_coord, max_coord)
ax.set_ylim(-max_coord, max_coord)
ax.set_aspect('equal', adjustable='box')

ax.set_xlabel('x')
ax.set_ylabel('y')
ax.set_title('Perpendicular 2D Vectors')
ax.grid(True, linestyle='--', linewidth=0.5)
plt.show()

Zero Inner Product in 3D

Similarly, in 3D, $\langle v_1, v_2\rangle = \langle v_1, v_3\rangle = \langle v_2, v_3\rangle = 0$ means the 3 vectors are mutually perpendicular
This can be shown by first writing the vectors in spherical coordinates \begin{align*} \begin{cases} x = \sin \phi \cos \theta\\ y = \sin \phi \sin \theta\\ z = \cos \phi \end{cases}, \end{align*} but I’ll spare you the details

Perpendicular in 3D

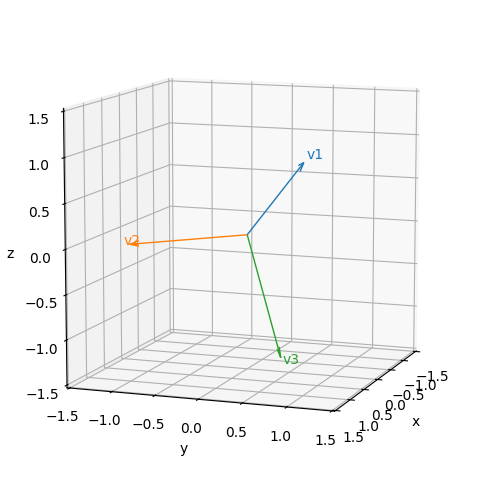

Mutually perpendicular 3D vectors with norm 1 are just “rotation” of $(1, 0, 0)^{\mathsf T}$, $(0, 1, 0)^{\mathsf T}$ and $(0, 0, 1)^{\mathsf T}$

[333]:

import numpy as np
import matplotlib.pyplot as plt
from mpl_toolkits.mplot3d import Axes3D

# Define three mutually perpendicular vectors in 3D
v1 = np.array([1.0, 1.0, 1.0])
v2 = np.array([1.0, -1.0, 0.0])  # v1.dot(v2) = 0
# v3 is chosen as the cross product v1 x v2 to ensure orthogonality and then scaled
v3 = np.cross(v1, v2)
v3 = v3 / np.linalg.norm(v3) * 1.5

fig = plt.figure(figsize=(6,6))
ax = fig.add_subplot(111, projection='3d')

# plot arrows from origin; arrow_length_ratio controls head size
ax.quiver(0, 0, 0, v1[0], v1[1], v1[2], color='C0', linewidth=1, arrow_length_ratio=0.08)
ax.quiver(0, 0, 0, v2[0], v2[1], v2[2], color='C1', linewidth=1, arrow_length_ratio=0.08)
ax.quiver(0, 0, 0, v3[0], v3[1], v3[2], color='C2', linewidth=1, arrow_length_ratio=0.08)

# annotate tips
ax.text(*(v1 * 1.05), 'v1', color='C0')
ax.text(*(v2 * 1.05), 'v2', color='C1')
ax.text(*(v3 * 1.05), 'v3', color='C2')

# symmetric limits around origin
max_coord = np.max(np.abs(np.vstack((v1, v2, v3)))) * 1.25
ax.set_xlim(-max_coord, max_coord)
ax.set_ylim(-max_coord, max_coord)
ax.set_zlim(-max_coord, max_coord)

# enforce equal aspect ratio if supported
try:
    ax.set_box_aspect([1,1,1])
except Exception:
    # older matplotlib: approximate equal aspect by leaving symmetric limits
    pass

ax.set_xlabel('x')
ax.set_ylabel('y')
ax.set_zlabel('z')
# ax.set_title('Three Mutually Perpendicular 3D Vectors')
# Set a camera view (elevation, azimuth) to make perpendicular relationships easier to see
ax.view_init(elev=10, azim=20)
plt.show()

Zero Inner Product in General ($n$-D)

In 2D there can be at most 2 vectors that are mutually perpendicular
In 3D there can be at most 3 vectors that are mutually perpendicular
In general, in $n$-D there can be at most $n$ vectors that are mutually perpendicular
- In fact that’s the definition of the dimension in linear algebra: Maximum number of vectors one can find in a space that’s mutually independent
- Given a set of mutually independent vectors, mutually perpendicular vectors can be constructed through the Gram-Schmidt process

An $n\times n$ unitary matrix is one whose $n$ column vectors are mutually perpendicular with norm 1
Such $n$ vectors are just rotation of the so called standard basis $(1, 0,\ldots, 0)^{\mathsf T}$, $(0, 1,\ldots, 0)^{\mathsf T}$ and $(0, 0,\ldots, 1)^{\mathsf T}$

Unitary Matrix as a Rotation Matrix

2D unit vector has the general form $(\cos\theta, \sin\theta)^{\mathsf T}$

A 2D unit vector that’s perpendicular to $(\cos\theta, \sin\theta)^{\mathsf T}$ must be (?) $(\cos(\theta+\pi/2), \sin(\theta+\pi/2))^{\mathsf T} = (-\sin\theta, \cos\theta)^{\mathsf T}$
- The direction is unique but sign can change, that is, $-(-\sin\theta, \cos\theta)^{\mathsf T}$ is also a perpendicular vector

Thus $2\times 2$ unitary matrices have the general form \begin{align*} R = \begin{pmatrix} \cos\theta & -\sin\theta \\ \sin\theta & \cos\theta\\ \end{pmatrix}, \end{align*} which is a rotation matrix

$R$ has a property that $R\vec v$ rotates the direction of $\vec v$ counterclockwise through $\theta$
In general, an $n\times n$ unitary matrix is a rotation matrix that, when multiplied by an $n$-D vector, rotates the vector

One Property of SVD

Recall that $X_{m\times n} = USV^{\mathsf T}$ with $m>n$. We will write $T = US$ and $X = TV^{\mathsf T}$: \begin{align*} X_{m\times n} &= \begin{pmatrix} &\\ |&|& &&& | \\\\ u_1 & u_2 && \cdots && u_m \\\\ |&|& &&& | \\\\ \end{pmatrix}_{m\times m}\begin{pmatrix} s_{11} & 0 & \cdots & 0\\ 0 & s_{2, 1} & \cdots & 0\\ \vdots & \vdots & \ddots & \vdots\\ 0 & 0 & \cdots & s_{nn}\\ \vdots & \vdots & \vdots & \vdots\\ 0 & 0 & \cdots & 0\\ \end{pmatrix}_{m\times n}\begin{pmatrix} \frac{\qquad}{} & v_1^{\mathsf T} & \frac{\qquad}{} \\ \frac{\qquad}{} & v_2^{\mathsf T} & \frac{\qquad}{} \\ & \vdots & \\ \frac{\qquad}{} & v_n^{\mathsf T} & \frac{\qquad}{} \\ \end{pmatrix}_{n\times n}\\ &= TV^{\mathsf T} = \begin{pmatrix} \\ |&|& & | \\\\ s_{11} u_1 & s_{22} u_2 & \cdots & s_{nn}u_n \\\\ |&|& & | \\\\ \end{pmatrix}_{m\times n}\begin{pmatrix} \frac{\qquad}{} & v_1^{\mathsf T} & \frac{\qquad}{} \\ \frac{\qquad}{} & v_2^{\mathsf T} & \frac{\qquad}{} \\ & \vdots & \\ \frac{\qquad}{} & v_n^{\mathsf T} & \frac{\qquad}{} \\ \end{pmatrix}_{n\times n} \end{align*}

One Property of SVD (Cont.)

\begin{align*} X_{m\times n} = TV^{\mathsf T} = \begin{pmatrix} \\ |&|& & | \\\\ s_{11} u_1 & s_{22} u_2 & \cdots & s_{nn}u_n \\\\ |&|& & | \\\\ \end{pmatrix}_{m\times n}\begin{pmatrix} \frac{\qquad}{} & v_1^{\mathsf T} & \frac{\qquad}{} \\ \frac{\qquad}{} & v_2^{\mathsf T} & \frac{\qquad}{} \\ & \vdots & \\ \frac{\qquad}{} & v_n^{\mathsf T} & \frac{\qquad}{} \\ \end{pmatrix}_{n\times n} \end{align*}

$T$, like $U$, has mutually perpendicular column vectors too but with norms $s_{11}, s_{22}, \ldots s_{nn}$
- For example $\langle s_{11}u_1, s_{22}u_2\rangle = s_{11}s_{22}\langle u_1, u_2\rangle = 0$, as $s_{11}$ and $s_{22}$ are simply scalars

Numpy SVD Function

import numpy

u, s, vt = numpy.linalg.svd(X)

Curve PCA

We start from collecting the yield curve movement data
- (curve on date $t$) - (curve on date $t-1$)
- If we use the Treasury yield curve for tenors $\geq$ 1y, it has $n=8$ points
We collect the daily curve movements from the past 3m (about $m=66$ days)
The daily curve movement data forms the $m\times n$ matrix $X$, whose SVD gives $X = TV^{\mathsf T}$

Columns of $V$, denoted by $v_j$, are the principal components (PCs).
- 1st column $v_1$ is PC1
- 2nd column $v_2$ is PC2
- 3rd column $v_3$ is PC3

Columns of $T$ are PC scores
- 1st column is scores corresponding to PC1
- 2nd column is scores corresponding to PC2
- 3rd column is scores corresponding to PC3

Data

Curve data

[334]:

table('daily-treasury-rates').head(4).iloc[:, 6:]

[334]:

	1y	2y	3y	5y	7y	10y	20y	30y
10/17/2025	3.56	3.46	3.47	3.59	3.78	4.02	4.58	4.60
10/16/2025	3.54	3.41	3.42	3.55	3.74	3.99	4.56	4.58
10/15/2025	3.61	3.50	3.51	3.63	3.82	4.05	4.61	4.64
10/14/2025	3.58	3.48	3.47	3.60	3.79	4.03	4.59	4.62

Curve movement

[379]:

-table('daily-treasury-rates').head(4).iloc[:, 6:].diff()

[379]:

	1y	2y	3y	5y	7y	10y	20y	30y
10/17/2025	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN
10/16/2025	0.02	0.05	0.05	0.04	0.04	0.03	0.02	0.02
10/15/2025	-0.07	-0.09	-0.09	-0.08	-0.08	-0.06	-0.05	-0.06
10/14/2025	0.03	0.02	0.04	0.03	0.03	0.02	0.02	0.02

PCs

Classic result
- PC1 is close to parallel shift
- PC2 controls the slope of the curve
- PC3 controls the curvature

[336]:

import numpy

X = -table('daily-treasury-rates').head(67).iloc[:, 6:].diff().dropna().values

m, n = X.shape

u, s, vt = numpy.linalg.svd(X)

T = u[:, :n] * s

v = vt.T

[337]:

from pandas import DataFrame
import matplotlib.pyplot as plt
import numpy as np

fig, ax = plt.subplots(figsize=(8, 4))

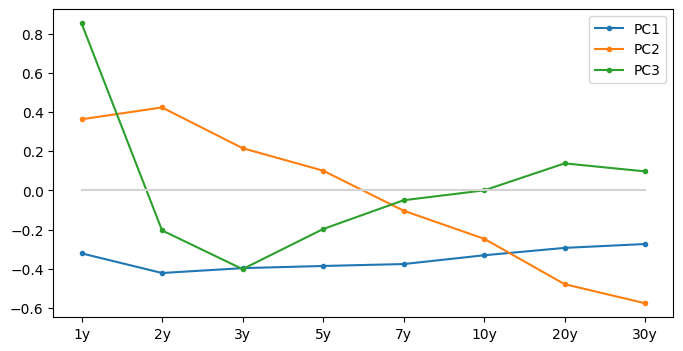

ax = DataFrame(v, columns=[f'PC{j}' for j in range(1, n+1)], index=['1y', '2y', '3y', '5y', '7y', '10y', '20y', '30y']).iloc[:, :3].plot(style='.-', ax=ax)
ax.plot(range(8), np.zeros(8), color='lightgray');

Scores

Classic result: PC1 score volatility $\gg$ PC2 score volatility $\gg$ PC3 score volatility
Given how tiny PC4 (and beyond) score volatility is, curve movements that can’t be explained by the first 3 PCs are often treated as noise

[338]:

(DataFrame(T, columns=[f'PC{j+1}' for j in range(n)])**2).mean().to_frame(name='Score Var').T

[338]:

	PC1	PC2	PC3	PC4	PC5	PC6	PC7	PC8
Score Var	0.014254	0.001473	0.000414	0.000197	0.000085	0.000035	0.000028	0.00002

[339]:

import matplotlib.pyplot as plt

fig, ax = plt.subplots(figsize=(8, 3))

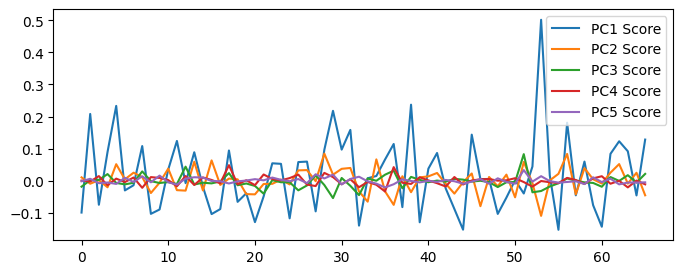

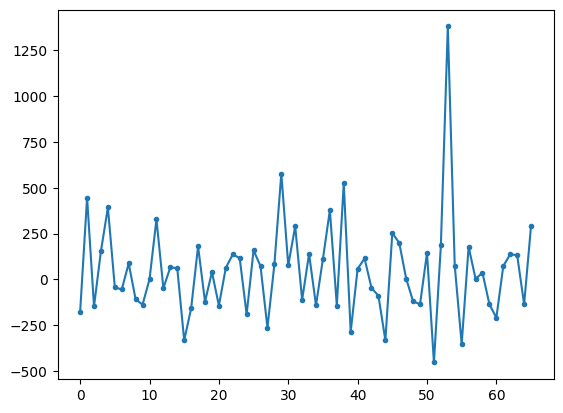

DataFrame(T, columns=[f'PC{j} Score' for j in range(1, n+1)]).iloc[:, :5].plot(ax=ax);

What Just Happened? The Implication

Recall that $X = TV^{\mathsf T}$. We have established that a unitary matrix like $V$ is a rotation matrix, so $X$ and $T$ are the same data, simply rotated
Think of rows of $X$ as independent sample points of the curve movement drawn from the same 8-dimensional distribution
Rows of $T$ are then also independent sample points drawn from some 8-dimensional distribution
One row of $X$ equals one row of $T$ multiplied by $V^{\mathsf T}$
- This is a conclusion from the block matrix multiplication

Block Matrix Multiplication

If all $A, B, C, \ldots, H$ have the right sizes so that all the below operations are legal, then

\[\begin{split}\begin{pmatrix} \begin{array}{c|c} A & B\\ \hline C & D \end{array} \end{pmatrix} \begin{pmatrix} \begin{array}{c|c} E & F\\ \hline G & H \end{array} \end{pmatrix} = \begin{pmatrix} \begin{array}{c|c} AE+BG & AF+BH\\ \hline CE+DG & CF+DH \end{array} \end{pmatrix}\end{split}\]
Legal means for example
- Number of columns in $A$ equals number of rows in $E$ so that the matrix multiplication $AE$ is defined
- $AE$ and $BG$ have the the same size so that $AE + BG$ is defined
That one row of $X$ equals one row of $T$ multiplied by $V^{\mathsf T}$ if $X = TV^{\mathsf T}$ is a special case where $X$ and $T$ are sliced into rows

The Implication (Cont.)

One row of $X$ equals one row of $T$ multiplied by $V$ \begin{align*} \begin{pmatrix} x_{11} & x_{12} & \cdots & x_{1n} \end{pmatrix} &= \begin{pmatrix} t_{11} & t_{12} & \cdots & t_{1n} \end{pmatrix} V^{\mathsf T}\\ &= \begin{pmatrix} t_{11} & t_{12} & t_{13} & \cdots & t_{1n} \end{pmatrix} \begin{pmatrix} \frac{\qquad}{} & v_1^{\mathsf T} & \frac{\qquad}{}\\ \frac{\qquad}{} & v_2^{\mathsf T} & \frac{\qquad}{}\\ \frac{\qquad}{} & v_3^{\mathsf T} & \frac{\qquad}{}\\ &\vdots&\\ \end{pmatrix}\\ &= t_{11} \vec v_1^{\mathsf T} + t_{12} \vec v_2^{\mathsf T} + t_{13} \vec v_3^{\mathsf T} + t_{14} \vec v_4^{\mathsf T} + \cdots + t_{1n} \vec v_n^{\mathsf T}\\ &= t_{11} \vec v_1^{\mathsf T} + t_{12} \vec v_2^{\mathsf T} + t_{13} \vec v_3^{\mathsf T} + \vec\epsilon\\ \end{align*}

We obtain a 3-factor model for the yield curve movement $\vec x$:

\[\vec x = t_1 \vec v_1 + t_2 \vec v_2 + t_3 \vec v_3 + \vec\epsilon,\]

where $t_1$, $t_2$ and $t_3$ are random variables, $\vec\epsilon$ is a (small) random noise vector, and $\vec v_1$, $\vec v_2$ and $\vec v_3$ are PCs from the data

Should We Center the Data?

Centering the data means find the average yield curve movement and subtract the average from the data
If we had centered the data with the average $\vec x_{\text{avg}}$, we would have got \begin{align*} \vec x = \vec x_{\text{avg}} + t_{1} \vec v_1 + t_{2} \vec v_2 + t_{3} \vec v_3 + \vec\epsilon\\ \end{align*}
In practice, PCA is performed in a rolling period, and $\vec x_{\text{avg}}$ would be a moving average
The 3-factor model is used to predict tomorrow’s yield curve movement. Whether to use the version with a moving average is personal choice
By not centering the data, we are saying $E[\vec x] = \vec x_{\text{avg}} = \vec 0$
One simple assumption that can lead to $E[\vec x] = \vec 0$ is

\[E[t_1] = E[t_2] = E[t_3] = 0,\qquad E[\vec\epsilon] = \vec 0\]

Uncorrelated Model Coefficients $t$’s

In matrix form, the truncation of PC4 and beyond means \begin{align*} \begin{pmatrix} x_{11} & x_{12} & \cdots & x_{1n} \end{pmatrix} &= \begin{pmatrix} t_{11} & t_{12} & t_{13} & \cdots & t_{1n} \end{pmatrix} \begin{pmatrix} \frac{\qquad}{} & v_1^{\mathsf T} & \frac{\qquad}{}\\ \frac{\qquad}{} & v_2^{\mathsf T} & \frac{\qquad}{}\\ \frac{\qquad}{} & v_3^{\mathsf T} & \frac{\qquad}{}\\ &\vdots&\\ \end{pmatrix}_{n\times n}\\ &= \begin{pmatrix} t_{11} & t_{12} & t_{13} \end{pmatrix} \begin{pmatrix} \frac{\qquad}{} & v_1^{\mathsf T} & \frac{\qquad}{}\\ \frac{\qquad}{} & v_2^{\mathsf T} & \frac{\qquad}{}\\ \frac{\qquad}{} & v_3^{\mathsf T} & \frac{\qquad}{} \end{pmatrix}_{3\times n} + \vec\epsilon\\ \end{align*}
Stack the rows back to matrices: \begin{align*} X \approx \begin{pmatrix} t_{11} & t_{12} & t_{13}\\ t_{21} & t_{22} & t_{23}\\ &\vdots&\\ t_{m1} & t_{m2} & t_{m3} \end{pmatrix}_{m\times 3} \begin{pmatrix} \frac{\qquad}{} & v_1^{\mathsf T} & \frac{\qquad}{}\\ \frac{\qquad}{} & v_2^{\mathsf T} & \frac{\qquad}{}\\ \frac{\qquad}{} & v_3^{\mathsf T} & \frac{\qquad}{} \end{pmatrix}_{3\times n} \end{align*}

Uncorrelated Model Coefficients $t$’s (Cont.)

\[\]

\begin{align*} X \approx \begin{pmatrix} t_{11} & t_{12} & t_{13}\\ t_{21} & t_{22} & t_{23}\\ &\vdots&\\ t_{m1} & t_{m2} & t_{m3} \end{pmatrix}_{m\times 3} \begin{pmatrix} \frac{\qquad}{} & v_1^{\mathsf T} & \frac{\qquad}{}\\ \frac{\qquad}{} & v_2^{\mathsf T} & \frac{\qquad}{}\\ \frac{\qquad}{} & v_3^{\mathsf T} & \frac{\qquad}{} \end{pmatrix}_{3\times n} \end{align*}

$t$’s from the same column is realizations of a random variable
We have 3 columns of realizations from 3 random variables
We have established the assumption that all 3 random variables have mean 0

Recall the property that, columns of the $T$ matrix have zero inner product: \begin{align*} &t_{11}t_{12} + t_{21}t_{22} + \cdots + t_{m1}t_{m2} = 0,\\ &t_{11}t_{13} + t_{21}t_{23} + \cdots + t_{m1}t_{m3} = 0,\\ &t_{12}t_{13} + t_{22}t_{23} + \cdots + t_{m2}t_{m3} = 0 \end{align*}
That means the 3 random variables are uncorrelated

Sample Covariance and Correlation

Recall that, if we have two random variables $Y$, $Z$, both with mean zero, and their samples $\{Y_j\}_{j=1}^m$, $\{Z_j\}_{j=1}^m$, the sample standard deviations and corvariance are \begin{align*} s_Y = \sqrt{\frac{\sum_{j=1}^m Y_j^2}{m-1}}, \qquad s_Z = \sqrt{\frac{\sum_{j=1}^m Z_j^2}{m-1}}, \qquad s_{YZ} = \frac{\sum_{j=1}^m Y_jZ_j}{m-1}, \end{align*} respectively, and the correlation is $s_{YZ}/(s_Y s_Z)$
When $n$ goes to infinity, the sample standard deviations and corvariance converge to the theoretical value

\[\sqrt{E[Y^2]}, \qquad\sqrt{E[Z^2]}, \qquad E[YZ],\]

respectively
If $\sum_{j=1}^m Y_jZ_j = 0$, that will make the sample covariance and correlation both zero
If we treat the random realizations $\{Y_j\}_{j=1}^m$ and $\{Z_j\}_{j=1}^m$ as two $m$-dimensional vectors, zero inner product of these two vectors means the sample correlation is zero

3-Factor Model

The model:

\[\vec x = t_1 \vec v_1+ t_2 \vec v_2+ t_3 \vec v_3+ \vec\epsilon,\]

where $t_1$, $t_2$ and $t_3$ are random variables, $\vec\epsilon$ is a (small) random noise vector, and $\vec v_1$, $\vec v_2$ and $\vec v_3$ are PCs from the data
Now we know $t_1$, $t_2$ and $t_3$ have zero sample correlations. A sensible assumption is that they are mutually independent
- Be careful independence implies zero correlation, but the reverse is not true

We have also established the assumptions

\[E[t_1] = E[t_2] = E[t_3] = 0,\qquad E[\vec\epsilon] = \vec 0\]

The simplest concrete model is that $t_1$, $t_2$ and $t_3$ are independently normally distributed with mean zero, and variances estimated by data

3-Factor Model Summary

Tomorrow’s yield curve movement is

\[\vec x = t_1 \vec v_1+ t_2 \vec v_2+ t_3 \vec v_3+ \vec\epsilon\]
$\vec\epsilon$ is a (small) random noise vector
$\vec v_1$, $\vec v_2$ and $\vec v_3$ are PCs from the data
$t_1$, $t_2$ and $t_3$ are independent normal random variables with mean 0, and their variances are estimated by data:

[340]:

(DataFrame(T, columns=[f'PC{j+1}' for j in range(n)])**2).mean().to_frame(name='Score Var').T

[340]:

	PC1	PC2	PC3	PC4	PC5	PC6	PC7	PC8
Score Var	0.014254	0.001473	0.000414	0.000197	0.000085	0.000035	0.000028	0.00002

\[t_1\sim N(0, 0.014254)\qquad t_2\sim N(0, 0.001473)\qquad t_3\sim N(0, 0.000414)\]

PCs Revisited

\[\vec x = t_1 \vec v_1+ t_2 \vec v_2+ t_3 \vec v_3 + \vec\epsilon\]

PC1 is close to parallel shift
PC2 controls the slope of the curve
PC3 controls the curvature

[341]:

import numpy

X = -table('daily-treasury-rates').head(67).iloc[:, 6:].diff().dropna().values

m, n = X.shape

u, s, vt = numpy.linalg.svd(X)

T = u[:, :n] * s

v = vt.T

[342]:

from pandas import DataFrame
import matplotlib.pyplot as plt
import numpy as np

fig, ax = plt.subplots(figsize=(8, 4))
ax = DataFrame(v, columns=[f'PC{j}' for j in range(1, n+1)], index=['1y', '2y', '3y', '5y', '7y', '10y', '20y', '30y']).iloc[:, :3].plot(style='.-', ax=ax)
ax.plot(range(8), np.zeros(8), color='lightgray');

PC1 Scenarios: Parallel Shift

Holding $t_2 = t_3 = 0$. A few possible realizations of $t_1$ (std amplified 10 times for a better visualization, and same for PC2 and PC3 scenarios below)

[343]:

import numpy as np

n_scenarios = 5

# PCs
v1, v2, v3 = v[:, :3].T

# std of coefficients
std1, std2, std3 = 10*np.sqrt((DataFrame(T, columns=[f'PC{j+1}' for j in range(n)])**2).mean()).to_frame(name='Score Var').values.flatten()[:3]

# random scenarios
t1_scenarios = np.random.normal(loc=0, scale=std1, size=n_scenarios)
t2_scenarios = np.random.normal(loc=0, scale=std2, size=n_scenarios)
t3_scenarios = np.random.normal(loc=0, scale=std3, size=n_scenarios)

print(t1_scenarios)

[ 1.29061263 -1.91333395 -1.01081064 -1.42220717  0.28616997]

Scenario curves:

\[\text{Tomorrow's Curve $=$ Today's Curve $+\vec x + \vec\epsilon =$ Today's Curve $+t_1 \vec v_1 + \vec\epsilon$}\]

[344]:

import pandas as pd

curve_today = table('daily-treasury-rates').head(1).iloc[:, 6:].T

pc1_scenario_curves = pd.concat([curve_today, DataFrame(np.outer(v1, t1_scenarios) + curve_today.values, index=curve_today.index, columns=[f's{j}' for j in range(1, n_scenarios+1)])], axis='columns')

pc1_scenario_curves

[344]:

	10/17/2025	s1	s2	s3	s4	s5
1y	3.56	3.145144	4.175025	3.884916	4.017156	3.468013
2y	3.46	2.915720	4.266895	3.886281	4.059776	3.339316
3y	3.47	2.957706	4.229477	3.871230	4.034529	3.356408
5y	3.59	3.091960	4.328345	3.980066	4.138822	3.479569
7y	3.78	3.294604	4.499600	4.160163	4.314888	3.672372
10y	4.02	3.592454	4.653837	4.354855	4.491140	3.925199
20y	4.58	4.201118	5.141693	4.876741	4.997514	4.495990
30y	4.60	4.246604	5.123910	4.876781	4.989430	4.521641

PC1 Scenarios: Parallel Shift (Cont.)

[345]:

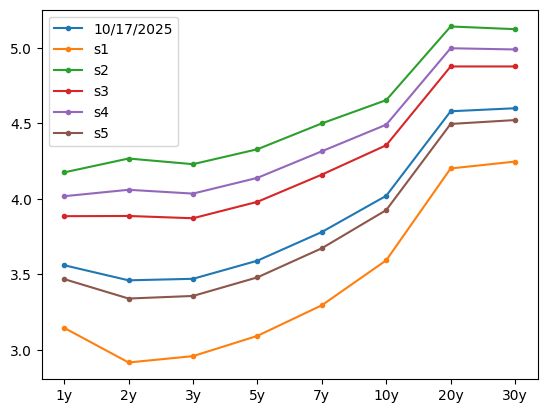

pc1_scenario_curves.plot(style='.-');

PC2 Scenarios: Slope Change

Holding $t_1 = t_3 = 0$. A few possible realizations of $t_2$:

[346]:

print(t2_scenarios)

[-0.09221954 -0.09366528 -0.35735591 -0.09354906 -0.18492912]

Scenario curves:

\[\text{Tomorrow's Curve $=$ Today's Curve $+t_2 \vec v_2 + \vec\epsilon$}\]

[347]:

pc2_scenario_curves = pd.concat([curve_today, DataFrame(np.outer(v2, t2_scenarios) + curve_today.values, index=curve_today.index, columns=[f's{j}' for j in range(1, n_scenarios+1)])], axis='columns')

pc2_scenario_curves

[347]:

	10/17/2025	s1	s2	s3	s4	s5
1y	3.56	3.526554	3.526030	3.430396	3.526072	3.492931
2y	3.46	3.420985	3.420374	3.308816	3.420423	3.381763
3y	3.47	3.450150	3.449839	3.393082	3.449864	3.430195
5y	3.59	3.580736	3.580591	3.554101	3.580602	3.571423
7y	3.78	3.789568	3.789718	3.817076	3.789706	3.799187
10y	4.02	4.042783	4.043140	4.108285	4.043111	4.065687
20y	4.58	4.624153	4.624845	4.751094	4.624789	4.668540
30y	4.60	4.653139	4.653972	4.805918	4.653905	4.706561

PC2 Scenarios: Slope Change (Cont.)

Curve can “steepen” or “flatten”

[348]:

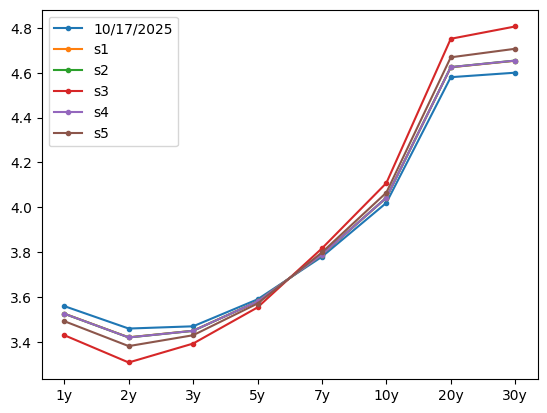

pc2_scenario_curves.plot(style='.-');

PC3 Scenarios: Curvature Change

Holding $t_1 = t_2 = 0$. A few possible realizations of $t_3$:

[349]:

print(t3_scenarios)

[ 0.00803162 -0.00072979 -0.08835312  0.17060337  0.01578796]

Scenario curves:

\[\text{Tomorrow's Curve $=$ Today's Curve $+t_3 \vec v_3 + \vec\epsilon$}\]

[350]:

pc3_scenario_curves = pd.concat([curve_today, DataFrame(np.outer(v3, t3_scenarios) + curve_today.values, index=curve_today.index, columns=[f's{j}' for j in range(1, n_scenarios+1)])], axis='columns')

pc3_scenario_curves

[350]:

	10/17/2025	s1	s2	s3	s4	s5
1y	3.56	3.566847	3.559378	3.484676	3.705446	3.573460
2y	3.46	3.458359	3.460149	3.478053	3.425140	3.456774
3y	3.47	3.466772	3.470293	3.505515	3.401424	3.463654
5y	3.59	3.588414	3.590144	3.607448	3.556310	3.586882
7y	3.78	3.779595	3.780037	3.784459	3.771391	3.779203
10y	4.02	4.019999	4.020000	4.020007	4.019986	4.019999
20y	4.58	4.581106	4.579900	4.567838	4.603483	4.582173
30y	4.60	4.600777	4.599929	4.591452	4.616505	4.601527

PC3 Scenarios: Curvature Change (Cont.)

[351]:

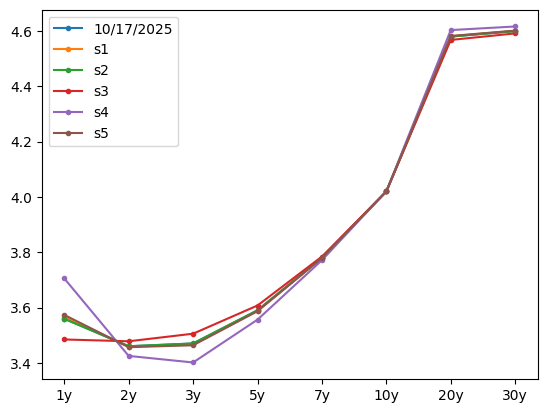

pc3_scenario_curves.plot(style='.-');

Cumulative Percentage of Variance Explained

Recall the score matrix

\[\begin{split}T = \begin{pmatrix} t_{11} & t_{12} & \cdots & t_{1n}\\ t_{21} & t_{22} & \cdots & t_{2n}\\\\ &&\vdots& \\\\ t_{m1} & t_{m2} & \cdots & t_{mn} \end{pmatrix}_{m\times n}\end{split}\]
We assume each column are realizations of a random variable with mean 0
Under the assumption, we find sample variance column by column. For example, the first column gives the variance $\sum_{j=1}^m t_{j1}^2/m = 0.014254$, as listed below

[352]:

score_var = (DataFrame(T, columns=[f'PC{j+1}' for j in range(n)])**2).mean().to_frame(name='Score Var').T
score_var

[352]:

	PC1	PC2	PC3	PC4	PC5	PC6	PC7	PC8
Score Var	0.014254	0.001473	0.000414	0.000197	0.000085	0.000035	0.000028	0.00002

Cumulative Percentage of Variance Explained (Cont.)

Denote the variances by $\text{Var}_1, \text{Var}_2, \ldots, \text{Var}_n$:

\[\text{Var}_k = \frac{1}{m}\sum_{j=1}^m t_{jk}^2\]
The cumulative percentage of variance explained by the first $k$ PCs are defined by

\[\frac{\text{Var}_1 + \text{Var}_2 + \cdots + \text{Var}_k}{\text{Var}_1 + \text{Var}_2 + \text{Var}_3 + \cdots + \text{Var}_n}\]
Given the above data, the cumulative percentage of variance explained are

[353]:

var_explained = score_var.cumsum(axis='columns')/score_var.values.sum()
var_explained.index = ["Var Explained"]
var_explained

[353]:

	PC1	PC2	PC3	PC4	PC5	PC6	PC7	PC8
Var Explained	0.863574	0.952807	0.977915	0.989821	0.994952	0.997095	0.998814	1.0

PC1 alone explains 86% of the curve movement (the variances), PC1 and PC2 together explain 95%, and the first 3 PCs together explain almost 98%, which is quite common

Cumulative Percentage of Variance Explained (Cont..)

Recall the score matrix

\[\begin{split}T = US = \begin{pmatrix} t_{11} & t_{12} & \cdots & t_{1n}\\ t_{21} & t_{22} & \cdots & t_{2n}\\\\ &&\vdots& \\\\ t_{m1} & t_{m2} & \cdots & t_{mn} \end{pmatrix}_{m\times n} = \begin{pmatrix} \\ |&|& & | \\\\ s_{11} \vec u_1 & s_{22} \vec u_2 & \cdots & \vec s_{nn}u_n \\\\ |&|& & | \\\\ \end{pmatrix}_{m\times n}\end{split}\]

and recall that $\vec u_j$ has norm 1, so we have \begin{align*} \text{Var}_k = \frac{1}{m}\sum_{j=1}^m t_{jk}^2 = \frac{s_{kk}^2}{m} \sum_{j=1}^m u_{jk}^2 = \frac{s_{kk}^2}{m} \end{align*} and hence

\[\frac{\text{Var}_1 + \text{Var}_2 + \cdots + \text{Var}_k}{\text{Var}_1 + \text{Var}_2 + \text{Var}_3 + \cdots + \text{Var}_n} = \frac{s_{11}^2 + s_{22}^2 + \cdots + s_{kk}^2}{s_{11}^2 + s_{22}^2 + s_{33}^2 + \cdots + s_{nn}^2}\]

Cumulative Percentage of Variance Explained (Cont…)

u, s, vt = numpy.linalg.svd(X)

(s**2).cumsum()/(s**2).sum()

[360]:

# u, s, vt = numpy.linalg.svd(X)

print((s**2).cumsum()/(s**2).sum())

[0.86357429 0.95280679 0.97791528 0.9898212  0.994952   0.99709507
 0.99881385 1.        ]

Same as the previous table computed from the $T$ matrix

[361]:

var_explained

[361]:

	PC1	PC2	PC3	PC4	PC5	PC6	PC7	PC8
Var Explained	0.863574	0.952807	0.977915	0.989821	0.994952	0.997095	0.998814	1.0

Applications in Hedging

Recall that, given the Delta ladder and the curve movement, we can compute the PnL of a portfolio
Having a model for tomorrow’s yield curve movement means having a model for tomorrow’s portfolio PnL

[5]:

delta_ladder = table('yc_10022025_10032025').iloc[-8:, 3].to_frame().T
delta_ladder

[5]:

	1 Yr	2 Yr	3 Yr	5 Yr	7 Yr	10 Yr	20 Yr	30 Yr
Portfolio Delta Ladder	-3739	-2320	314	-65	23	-6	1	0

Denote by $\vec d$ the 8-dimensional Delta ladder
Recall that rows of $X$ are the daily yield curve movement, treated as independent sample points:

[381]:

-table('daily-treasury-rates').head(4).iloc[:, 6:].diff().dropna()

[381]:

	1y	2y	3y	5y	7y	10y	20y	30y
10/16/2025	0.02	0.05	0.05	0.04	0.04	0.03	0.02	0.02
10/15/2025	-0.07	-0.09	-0.09	-0.08	-0.08	-0.06	-0.05	-0.06
10/14/2025	0.03	0.02	0.04	0.03	0.03	0.02	0.02	0.02

$X\vec d$ is the daily PnL, a 66-dimensional vector
- “If, on 10/16/2025, my portfolio Delta ladder is $\vec d$, what’d have been the PnL?”

Daily PnL

[384]:

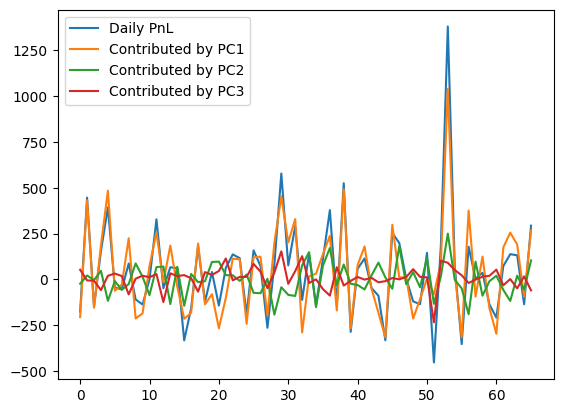

DataFrame(X @ d).plot(style='.-', legend=None);

PnL Attribution
